Product name：Six - Axis Robot

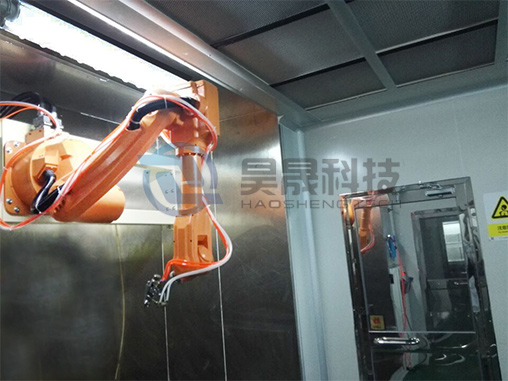

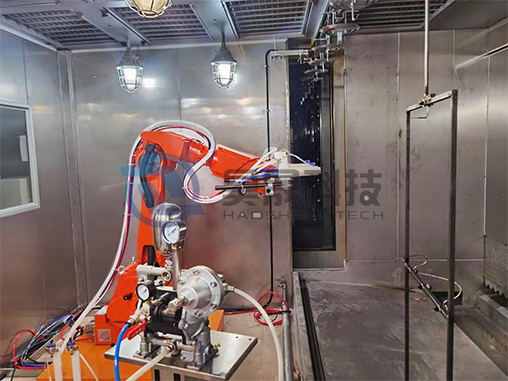

Model：HC-600-3 (Application: spraying, load shifting)
Application: toys, home appliances, air conditioning, sports equipment, fishing gear, mobile phones, cosmetics, 3C pen, craft accessories, automotive accessories, shoes, furniture, and other plastic, metal, wood, ceramics, glass spray;
Standard Specification
| Model | HC-600-3 | ||
| Movement pattern | Articulated Robot | ||
Number of Axi | 6 axis（J3.J2.J4.J5.J6） | ||
Installation Way | Any Angle | ||
Maximum Radius of Motion | 593mm | ||
Payload | 3kg | ||
Range of Motion | MaximumRange of Motion | Maximum Speed | |
| 1 axis | ±170° | 400°/sec | |
| 2 axis | ±85°/-135° | 330°/sec | |
| 3 axis | ±185°/-65° | 510°/sec | |
| 4 axis | ±190° | 520°/sec | |
| 5 axis | 550±130° | 330°/sec | |
| 6 axis | ±360° | 850°/sec | |
Weight of Body | 27kg | ||
Power | 1kW | ||
Protection Level | Body IP40 | ||
Electric Cabinet | |||
Position Repeat Accuracy | ±0.02mm | ||
Installation Environment | Temperature | 0-45℃ | |
Humidity | ≤75%RH/≤95%RH ( Within one month ) | ||
Vibration | Vibration Amplitude ：< 0.5G | ||
| Other | No condensation | ||
Application:
